JL-722B2B2

Zhaga buckle type light sensor+motion detection light controller

JL-722B2B2 light controller is a smart light controller developed based on ZHAGA BOOK18 interface standard. It adopts a combination sensor of light sensing and microwave sensing, DALI2.0 dimming signal, supports dual-mode configuration of dip switch and infrared remote control, and is equipped with Casambi Bluetooth mesh communication network. It can be controlled and configured by APP near field, and can also be configured remotely with Bluetooth gateway. The light controller is suitable for road, lawn, yard, park, parking lot, factory, warehouse and other lighting scenes.
The working logic of the product is that when the illumination level is met to turn on, the lamp operates at a slightly bright. If a moving object is detected at this time, the lamp becomes fully bright, and after the full bright duration is completed, it returns to a slightly bright. When stand-by peroid is over or the illumination level is met to turn off, the lamp will be turned off.

Features

12-24VDC power supply，low power consumption
ZHAGA BOOK18
DALI2.0
D4i
Microwave frequency dynamic adjustment
Φ50.4*35mm small size
light + microwave sensors
high performance microwave, 15 meters high, 6 m radius of the induction
CASAMBI BLE MESH
switch + infrared remote dual-mode configuration
IP66

Specifications

Power supply	Voltage：12~24VDC Current：12V/70mA；24V/35mA
Power consumption	＜0.7W
Dimming	DALI2.0
Sensors	Light+Microwave
Spectral acquisition range	Range：0.01~64000Lux Wavelength：350~1100nm，Peak 550nm
Microwave frequency	5.8GHz
Maximum hanging height	15m
Sensing radius	4-8m
Sensitivity	Factory default maximum sensitivity (100%), adjustable by dialing or remote control
Hold time	Default 30S，adjust through APP/IR/Dip switch
Stand-by dim level	Default 0%，adjust through APP/IR/Dip switch
Stand-by period	Default ∞，adjust through APP/IR
Turn on Illuminance	Factory default daytime light on (FF) is also triggered, and the APP/infrared remote control/dial switch is adjustable
Controlled light reflection compensation value	Default ∆50lux，adjust through APP/IR
Maximum power ratio	Default 100%，adjust through APP/IR
Mechanical Vibration	IEC60068-2-6
Flammability Level	UL94-V0
Operating Temperature	-40℃~70℃
Storage Temperature	-40℃~85℃
Operating Humidity	5%RH~99%RH
IP Level	IP66
Certifications	CE、RED、ZHAGA、D4i、DALI2.0、BQB、ROHS

Installation

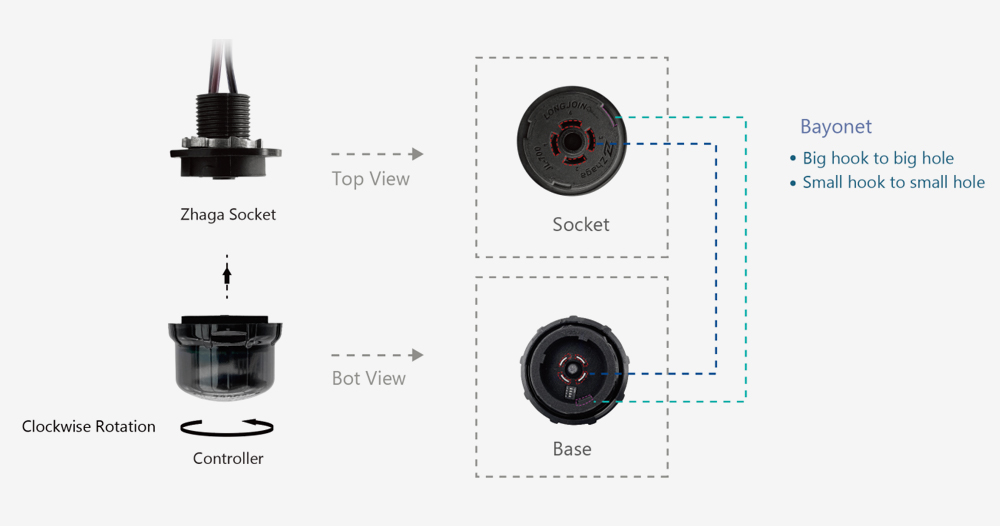

The interface of the product itself has been fool-proof design, the installation only need to tighten the controller directly to the rotatable base, as shown in Figure clockwise after insertion.

安装示意图英文

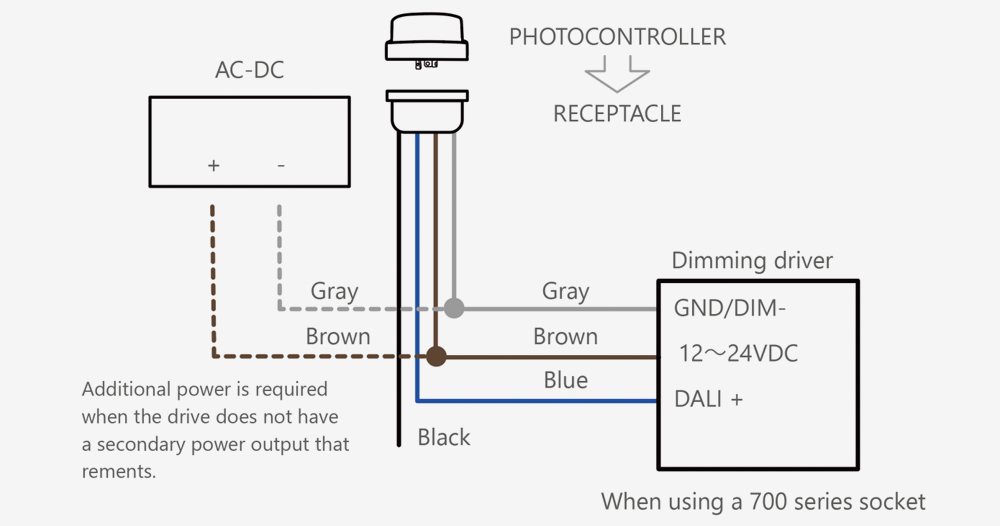

Wiring diagram
