JL-731A

Zhaga Book-18 Zhaga Controller

JL-731A series light controller products are intelligent rotary lock light controllers developed based on ZHAGA BOOK18 interface standard, which can output PWM dimming signals. All models have built-in photosensitive sensors. The light controller is suitable for lighting scenes such as roads, lawns, courtyards, and parks.

Features

DC power supply, low power consumption
ZHAGA BOOK18 interface standard
Small size, suitable for installation in most lamps
PWM dimming interface
Interference lighting filtering
Lamp reflected light compensation
IP66

Specifications

Model	JL-731A1	JL-731A2
Power Supply	Rated voltage：12~24VDC Rated current：10mA
Power Consumption	12V/5mA；24V/6mA
Sensor Type	Photosensitive tube
Spectral Acquisition Range	350~1100nm，Peak wavelength 550nm
Dimming interface	Type：PWM
Turn on Illuminance	50Lux（±10）
Turn off Illuminance	Reflected light + 40Lux（±10）after each turn on Lower limit：50+40Lux（±10） Upper limit：6000Lux（±100）
Reflected light compensation upper limit	6000Lux（±100）
Initialization	After power on, the light is turned on by default and maintains 5S, then automatically turns off the light and enters the auto-sensing operation mode *1
Turn on delay	5s
Turn off delay	20s
0%~100%；100%~0% Brightness change time	8s
Midnight Dimming	NC	Trigger: the average center point of the first ten days (The first day default call night base is 10 hours) Dimming Ratio:50% Duration Ratio:40% Less than 10 days is calculated based on the actual number of days
Energy saving strategy	NC	Factory Preset
Mechanical Vibration	IEC60068-2-6
Flammability Level	UL94-V0
Operating Temperature	-40℃~70℃
Storage Temperature	-40℃~85℃
Operating Humidity	5%RH~99%RH
IP Level	IP66
Certifications

Installation

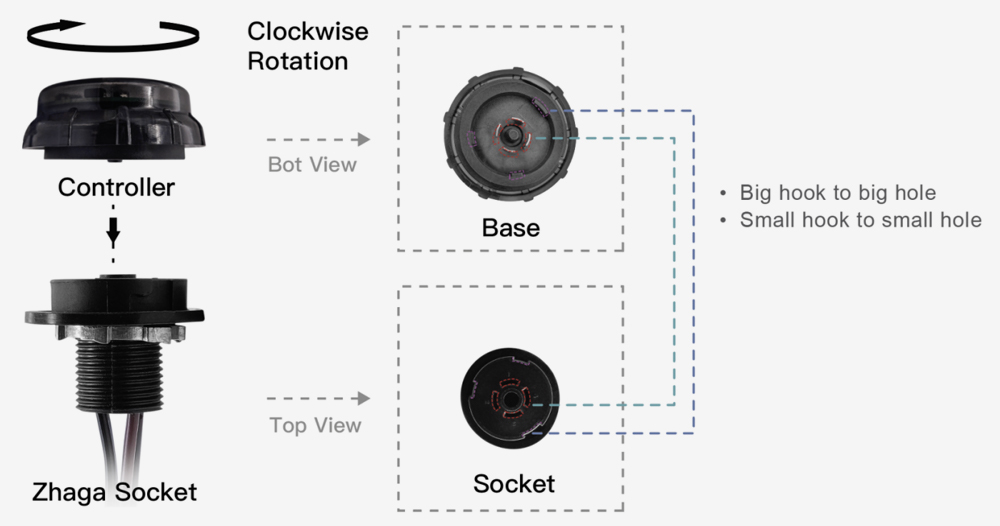

The interface of the product itself has been fool-proof design, the installation only need to tighten the controller directly to the rotatable base, as shown in Figure clockwise after insertion.

英文安装

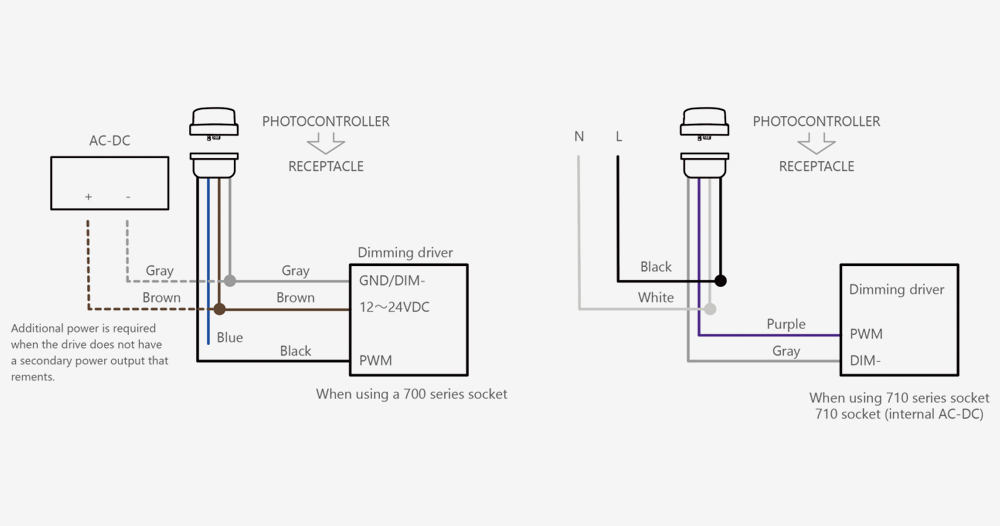

Wiring diagram

接线图英文
