YL-SML7W2A2B

Zhaga Book-18 latch type sensor

YL-SML7W2A2B is a sensor developed based on ZHAGA BOOK18 interface standard. It adopts a combination sensor of light sensing and microwave sensing, DALI2.0 signal, supports dual-mode configuration of dip switch and infrared remote control. The light controller is suitable for road, lawn, yard, park, parking lot, factory, warehouse and other lighting scenes.
The working logic of the product is that when the illumination level is met to turn on, the lamp operates at a slightly bright. If a moving object is detected at this time, the lamp becomes fully bright, and after the full bright duration is completed, it returns to a slightly bright. When the illumination level is met to turn off, the lamp will be turned off.

Features

12-24VDC power supply，low power consumption
ZHAGA BOOK18
DALI2.0
D4i
Microwave frequency dynamic adjustment
Φ50.4*35mm small size
light + microwave sensors
high performance microwave, 15 meters high, 6 m radius of the induction
switch + infrared remote dual-mode configuration
IP66

Specifications

Power supply	Voltage：12~24VDC Current：12V/60mA；24V/30mA
Power consumption	＜0.6W
Output interface	DALI2.0
Sensors	Light+Microwave
Spectral acquisition range	Range：0.01~64000Lux Wavelength：350~1100nm，Peak 550nm
Microwave frequency	5.8GHz
Maximum hanging height	15m
Sensing radius	4-8m
Sensitivity	Factory default maximum sensitivity (100%), adjustable by dialing or remote control
Turn on Illuminance	Factory default daytime light on (FF), infrared remote control/dial switch adjustable
Controlled light reflection compensation value	Default ∆50lux，adjust through IR
Mechanical Vibration	IEC60068-2-6
Flammability Level	UL94-V0
Operating Temperature	-40℃~70℃
Storage Temperature	-40℃~85℃
Operating Humidity	5%RH~99%RH
IP Level	IP66
Certifications	CE、ZHAGA、D4i、DALI2.0、ROHS

Installation

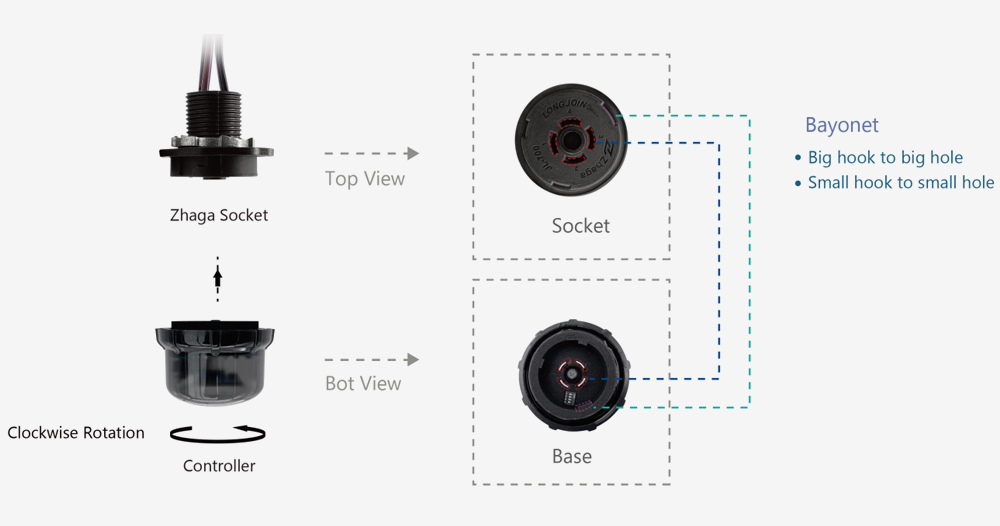

The interface of the product itself has been fool-proof design, the installation only need to tighten the controller directly to the rotatable base, as shown in Figure clockwise after insertion.

安装示意图英文

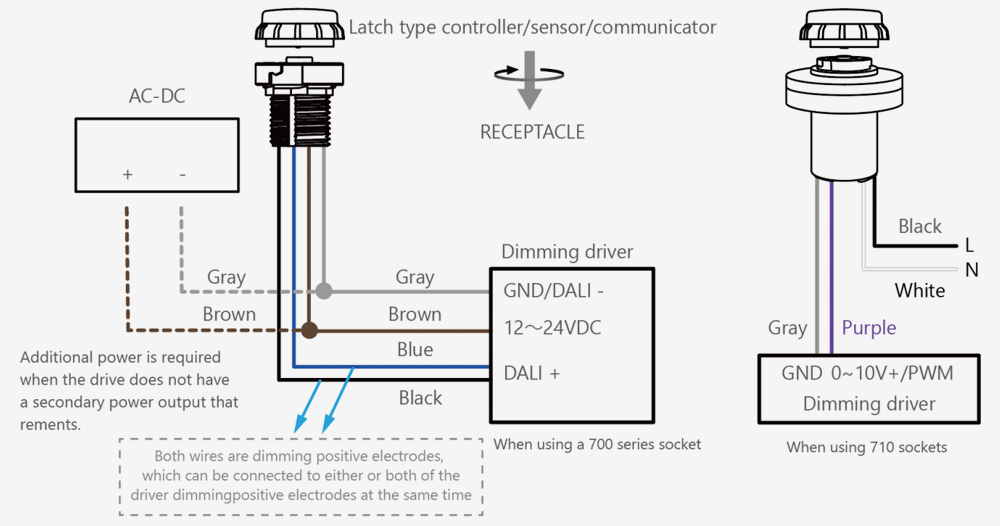

Wiring diagram
