JL-700

Zhaga Book-18 Receptacle (4P, LEX-R)

Jl-700 locking socket meets the requirements of Zhaga Book-18 standard interface (Z-LEX-R、Z-LEX-C) and has passed relevant certification, which is convenient for the development and installation of road lighting, regional lighting or commercial and residential lighting, such as street lights, industrial and mining lights, corridor lights, wall lights, etc.

Features

Standardized interface defined in Zhaga Book-18
Compact size allowing greater flexibility in luminaire design
Advanced sealing to achieve IP66 with no mounting screws
Scalable solution allows use of Ø40mm photocell and Ø80mm LEX-M in a central management system with the same connection interface
Flexible mounting position, upwards, downwards and sideways facing
Integrated single gasket that seals to both luminaire and module that minimizes assembling time

Specifications

Model No.	JL-700
Related Humidity	96%
Ambient Temperature	-40°C ~ +70 °C
*Wires	AWM 1015,18/20/22 AWG,105°C AWM 1007,18/20/22 AWG,80°C 6" min
IP	IP66
Certifications

*Conductor specification: # 20 conductor has UL certification

Installation

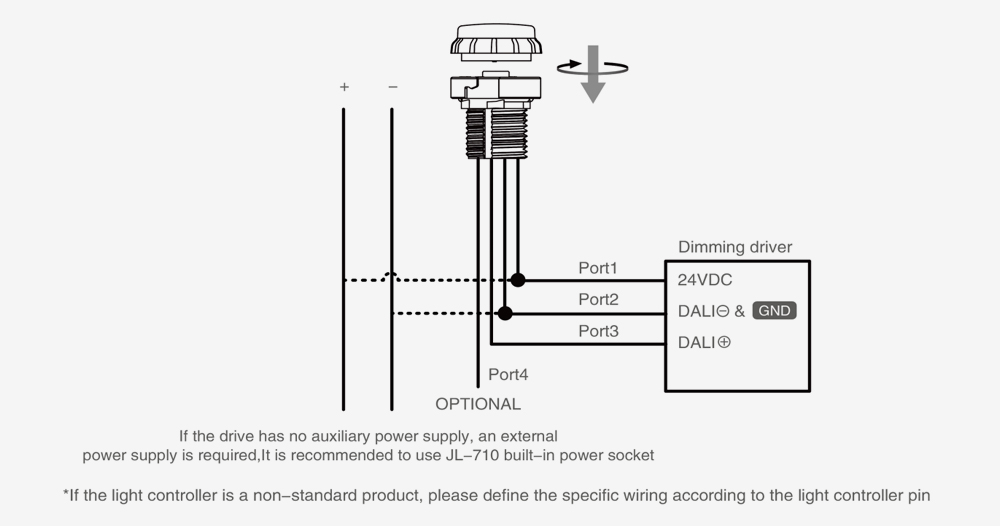

接线图英文

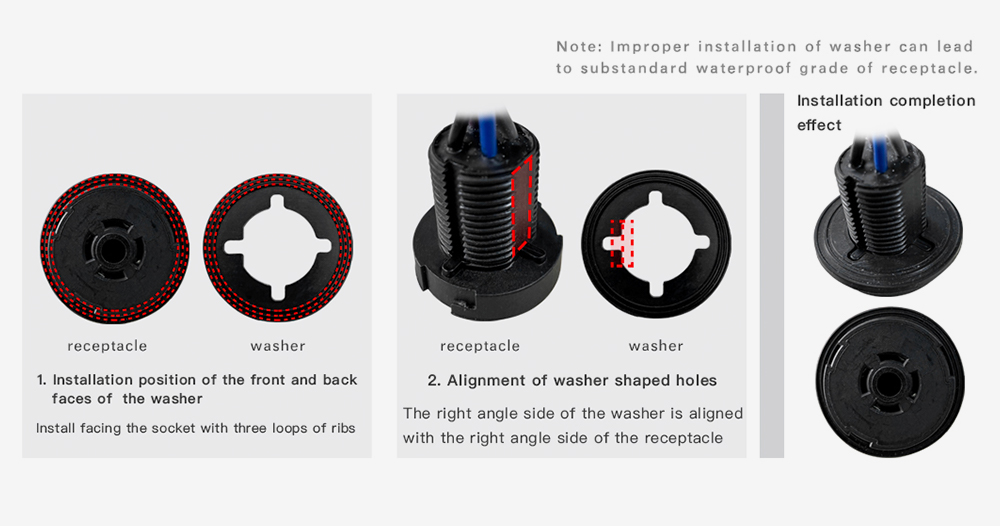

Precautions for installation of gaskets for Zhaga socket products ：

线稿图
