JL-700W

Zhaga Book-18 Receptacle（Leadless version）

Jl-700W locking socket meets the requirements of Zhaga Book-18 standard interface (Z-LEX-R、Z-LEX-C) and has passed relevant certification, which is convenient for the development and installation of road lighting, regional lighting or commercial and residential lighting, such as street lights, industrial and mining lights, corridor lights, wall lights, etc.

Features

Standardized interface defined in Zhaga Book-18
Compact size allowing greater flexibility in luminaire design
Advanced sealing to achieve IP66 with no mounting screws
Flexible mounting position, upwards, downwards and sideways facing
Integrated single gasket that seals to both luminaire and module that minimizes assembling time

Specifications

Model No.	JL-700W
Rated Voltage	24VDC
Power Consumption	1.5A MAX
Related Humidity	-40°C ~ +70 °C
Ambient Temperature	96%
Wires	20~22AWG，Strip the head 9 ~ 11mm and tin it
IP	IP66
Certifications

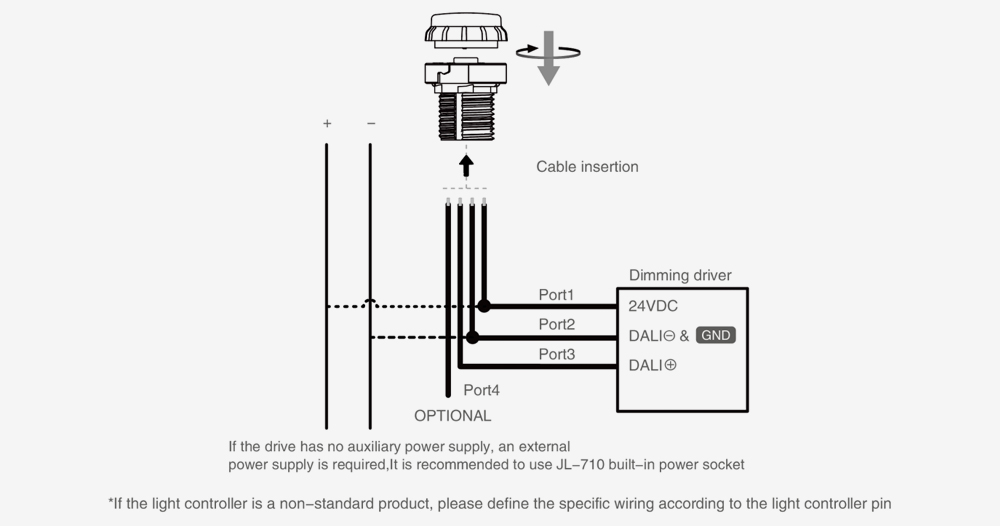

Installation

接线图英文

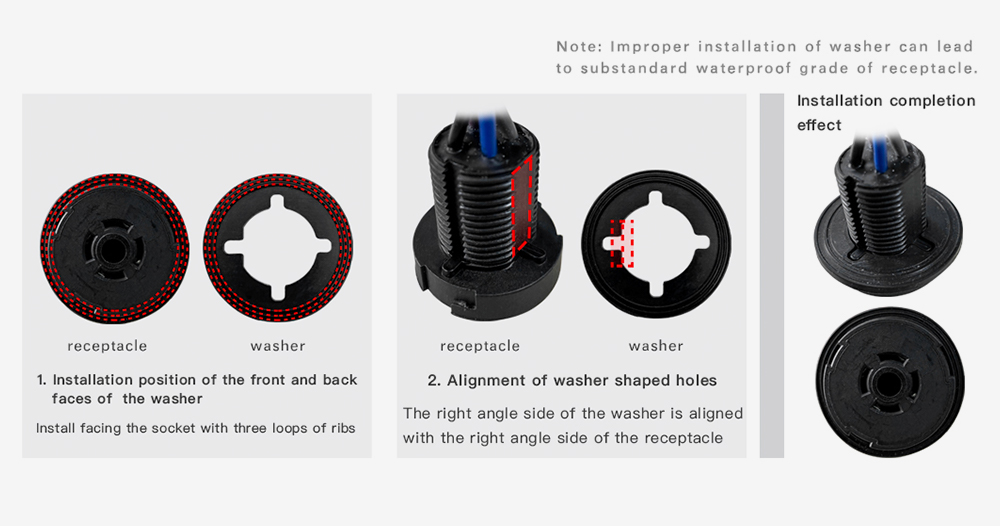

Precautions for installation of gaskets for Zhaga socket products ：

线稿图

Ordering Information
