JL-700S

Zhaga Book-18 Receptacle（Short thread）

Jl-700S locking socket meets the requirements of Zhaga Book-18 standard interface (Z-LEX-R、Z-LEX-C) and has passed relevant certification, which is convenient for the development and installation of road lighting, regional lighting or commercial and residential lighting, such as street lights, industrial and mining lights, corridor lights, wall lights, etc.

Features

Standardized interface defined in Zhaga Book-18
Compact size allowing greater flexibility in luminaire design
Advanced sealing to achieve IP66 with no mounting screws
Scalable solution allows use of Ø40mm photocell and Ø80mm LEX-M in a central management system with the same connection interface
Flexible mounting position, upwards, downwards and sideways facing
Integrated single gasket that seals to both luminaire and module that minimizes assembling time

Specifications

Model No.	JL-700S
Rated Voltage	24VDC
Power Consumption	1.5A MAX
Related Humidity	96%
Ambient Temperature	-40°C ~ +70 °C
*Wires	AWM 1015,18/20/22 AWG,105°C AWM 1007,18/20/22 AWG,80°C
IP	IP66
Certifications

Installation

线稿图

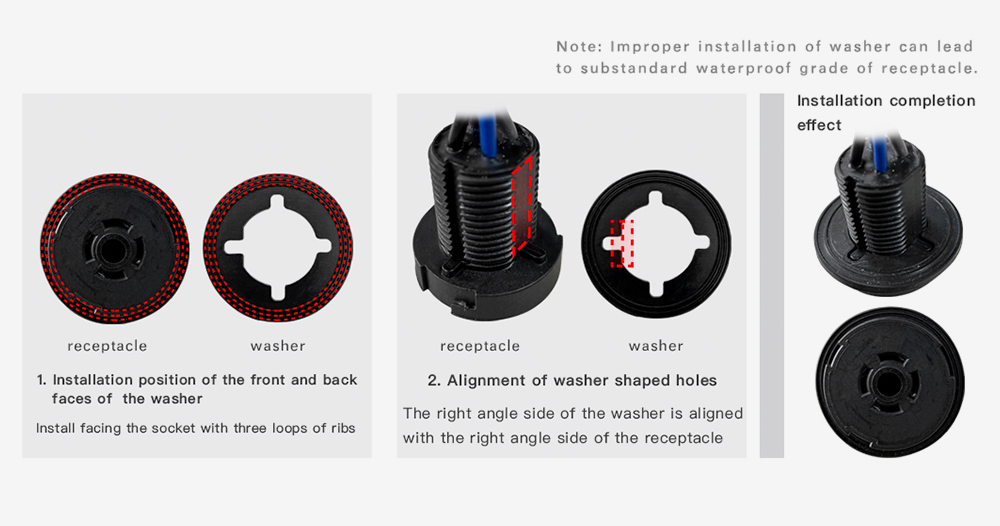

Precautions for installation of gaskets for Zhaga socket products ：

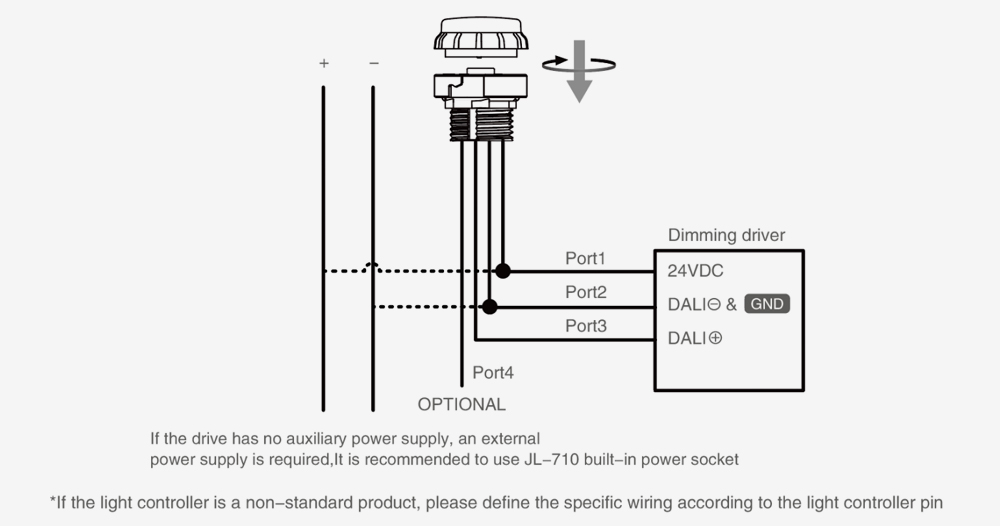

线稿图

Ordering Information

There is currently no content available
