JL-700T3N

Zhaga Book-18 latch socket (spring pin version)

The JL-700T3N lock buckle socket meets the interface requirements of the Zhaga Book-18 standard (Z-LEX-R, Z-LEX-C), making it convenient for development and installation of integrated lighting fixtures for road lighting, regional lighting, or commercial and residential lighting, such as street lights, mining lights, corridor lights, wall lights, etc.

Features

Compliant with Zhaga Book-18 standard interface
Paired with the controller, it can reach IP66, and a single socket can reach IP20
Integrated single gasket, can seal lamps and modules, minimizing assembly time
Compact and suitable for more lighting fixtures
Flexible installation position, can be installed on the top/bottom/side of the lamp, etc
Supports hot swapping
Contact rating: 1.5A, 24VDC (maximum 30VDC)
Working temperature range of 40~70 ℃

Specifications

Product number	JL-700T3N
Interface rated voltage	24VDC
Interface rated current	1.5A MAX
Working humidity	96%
working temperature	-40°C ~ +70 °C
IP	IP66
authentication	None

Installation

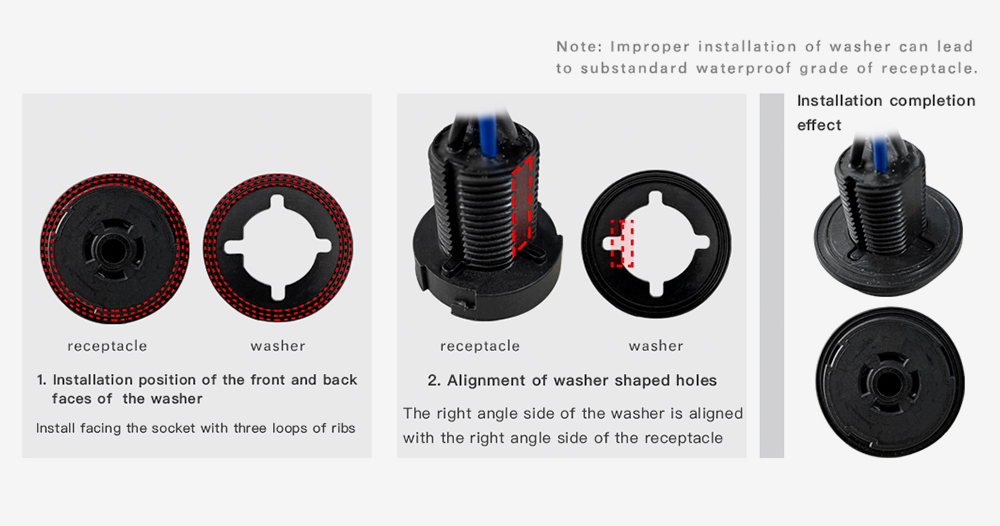

Precautions for installation of gaskets for Zhaga socket products ：
