JL-770W

Class Zhaga Book-18 lock socket (no wire version)

Similar to Zhaga Book-18 standard, JL-770W socket is suitable for 0-10V dimming scheme, which is convenient for developing standard equipment suitable for road lighting, regional lighting or residential lighting.
According to the equipment arrangement, these equipment can adopt monitoring, communication, control and other functions based on 0-10V dimming.

Features

leadless version, convenient for modification and new installation
similar to Zhaga Book-18 standard interface, used for 0-10V dimming scheme
small size, suitable for more lamps
advanced sealing, IP66 can be achieved without installing screws
expandable solution: it is allowed to use Φ 40-80mm expansion controller with the same connection interface in the central management system
flexible installation position, which can be installed on the top / bottom / side of the lamp
integrated single gasket to seal lamps and modules to minimize assembly time

Specifications

Model No.	JL-770W
Rated Voltage	24VDC
Power Consumption	1.5A MAX
Related Humidity	-40°C ~ +70 °C
Ambient Temperature	96%
Wires	20~22AWG，Strip the head 9 ~ 11mm and tin it
IP	IP66
Certifications

Installation

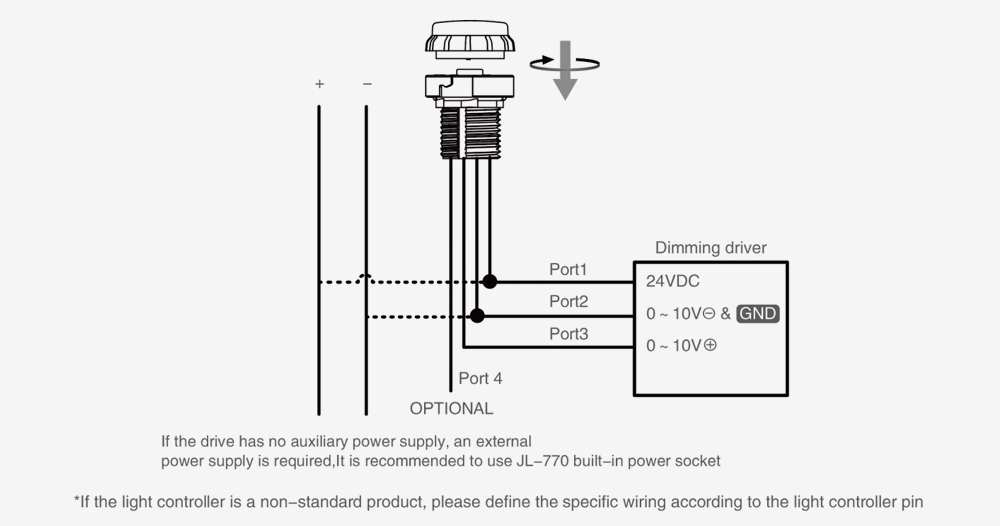

接线英文

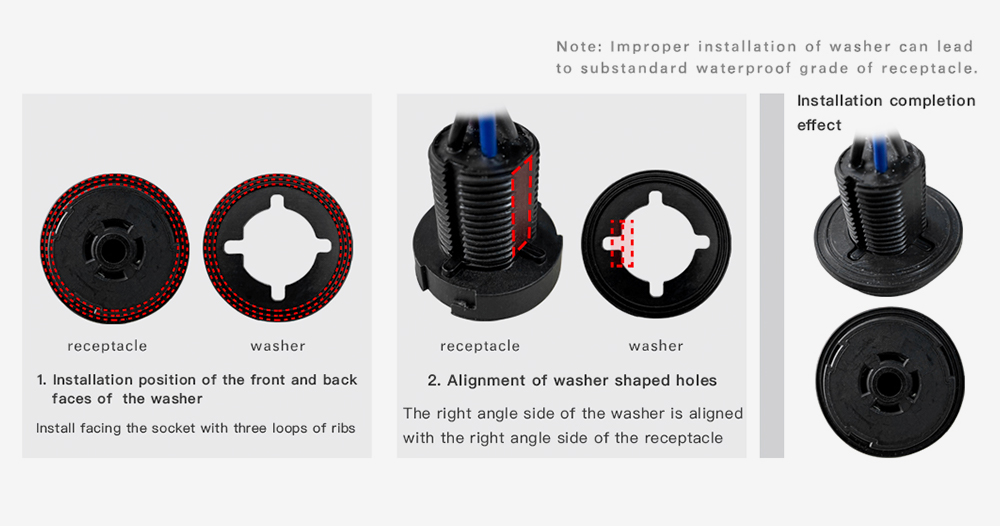

Precautions for installation of gaskets for Zhaga socket products：

线稿图

Ordering Information
