JL-770L

Class Zhaga Book-18 lock socket (cable version)

Similar to Zhaga Book-18 standard, JL-770L socket is suitable for 0-10V dimming scheme, which is convenient for developing standard equipment suitable for road lighting, regional lighting or residential lighting.
According to the equipment arrangement, these equipment can adopt monitoring, communication, control and other functions based on 0-10V dimming.

Features

Cable (red, yellow, purple and black)
Compact size allowing greater flexibility in luminaire design
Advanced sealing to achieve IP66 with no mounting screws
Scalable solution allows use of Ø40mm photocell and Ø80mm LEX-M in a central management system with the same connection interface
Flexible mounting position, upwards, downwards and sideways facing
Integrated single gasket that seals to both luminaire and module that minimizes assembling time

Specifications

Model No.	JL-770L
Rated Voltage	24VDC
Related Humidity	96%
Ambient Temperature	-40°C ~ +70 °C
*Wires	AWM 1015,18/20/22 AWG,105°C AWM 1007,18/20/22 AWG,80°C
IP	IP66
Certifications

*Conductor specification: # 20 conductor has UL certification

Installation

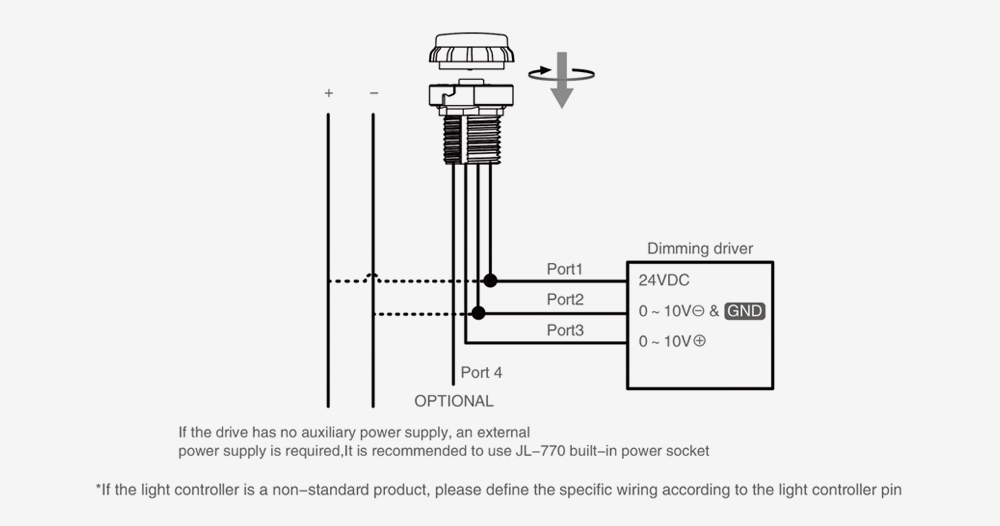

接线英文

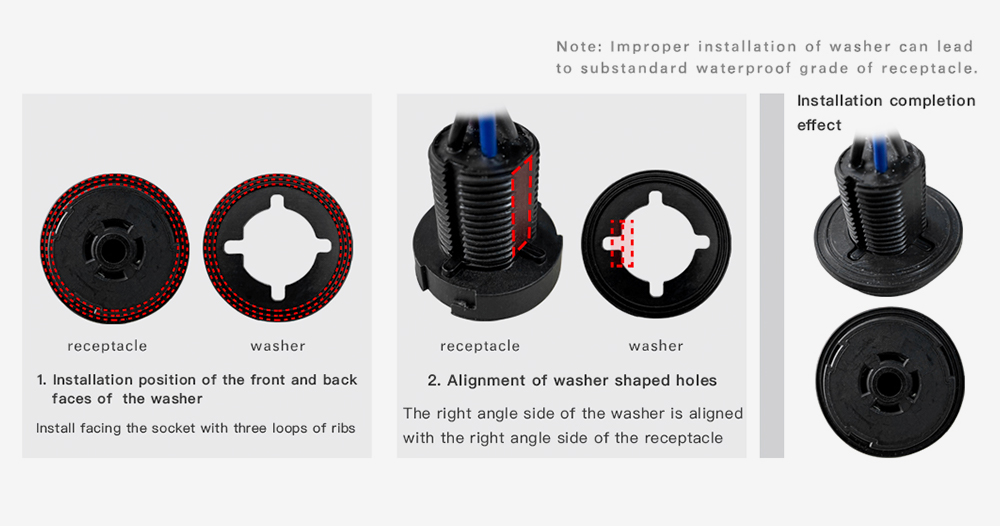

Precautions for installation of gaskets for Zhaga socket products:

线稿图

Ordering Information
