JL-710

Lock type socket

The JL-710 product is a socket developed based on the ZHAGA BOOK18 interface size standard. It has a built-in AC-DC switching power supply, witch can output 24VDC/5W.
It can solve the application scenario of the customer driver without auxiliary voltage output to the ZHAGA light controller, and the cost is much lower than replacing a dimming driver with auxiliary voltage output.

Features

Standardized interface defined in Zhaga Book-18
Support top/side/bot installation
Compact size allowing greater flexibility in luminaire design
Low cost
85~305VAC input
CLASS II driver
No-load power consumption≤0.12W
Overvoltage/undervoltage/overcurrent/short circuit/open circuit/over
Temperature protection
0~10V dimming transfer interface
P66（When used with our light controller）
RoHS and UL certification

Specifications

Input voltage	*Rated：120-277VAC Limited：85~305VAC
Input frequency range	*50/60Hz
Maximum steady-state input AC current	30mA（full load，220VAC）
Cold start surge current（I2t）	0.009A2s（full load，220VAC）
Efficiency	80%（full load，220VAC）
Output voltage	24VDC
Accuracy	±2%
Rated current	0.21A
Rated power	5W
Ripple	100mVp-p
Nose	150mVp-p
Linear adjustment rate	±0.12%
Load adjustment rate	±5%
Start-up time	＜340mS
Start-up overshoot voltage	＜5%
No load power consumption	＜0.12W
Output undervoltage protection	Hiccup mode, automatic recovery after abnormal removal
Output overvoltage protection
Output overcurrent protection
Output short circuit protection
Output open circuit protection
Over temperature protection
Operating Temperature	-40℃~70℃
Storage Temperature	-40℃~85℃
Operating Humidity	5%RH~99%RH
Storage Humidity	5%RH~99%RH
Shell material	PBT
IP level	IP66（When used with our light controller）
Mechanical vibration	IEC60068-2-6
Flammability Level	UL94-V0
MTBF	≥80000h
Weight	85g
Certification

* Real rated voltage range: 100~277VAC
* Real input frequency range: 47~63Hz

Installation

The opening size is completely equivalent to the standard NEMA socket, so the lamp can be opened according to the original NEMA socket drawing. The lamp with already opened NEMA socket holes can also be directly installed on the JL-710 socket. JL-710 supports top/side/hanging installation, and can achieve IP66 protection level on any installation surface.

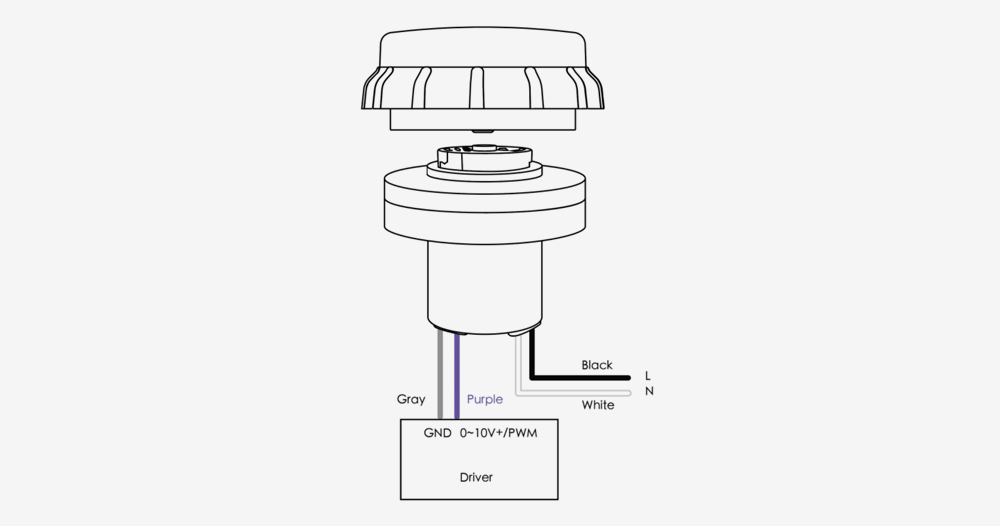

Wiring diagram

Ordering Information
