JL-245CC

NEMA interface rotary lock intelligent optical controller（LTE Cat.1）

JL-245CC is a NEMA type single light controller developed based on 4G (LTE Cat. 1) communication mode, which can perform remote control, configuration, and real-time monitoring of operating status. The product is compact in size and has a protection level of IP66. Suitable for lighting scenarios such as roads, parks, campuses, shopping malls, supermarkets, factories, parks, etc.

Features

85~305VAC wide voltage input
9A load capacity
Zero crossing switch, switch lifespan greater than 60000 times
6KV/3KA surge protection
Undervoltage/overvoltage/overcurrent fault self check report and protection
Class2.0 measurement accuracy (voltage/current/power/power factor/cumulative energy consumption)
Double layered shell for higher structural reliability
Φ 86 * 62.4mm ultra small size
Standard eSIM, supports replacement with external pluggable SIM
IP66

Specifications

Power supply	Fixed: 100-277VAC; 50/60Hz
Dimming output	Power supply: 85~305VAC; 47/63HZ
wireless communication	0-10VDC
Carrying capacity	4G (LTE Category 1)
Device power consumption	Subtitle: LTE-FDD: B1/B3/B5/B8 LTE-TDD: B34/B38/B39/B40/B41
Working environment temperature	≤ 9A
Working environment humidity	Mobile phone: 1.2W Mobile phone: 2.4W
Shell protection	-35 ℃~70 ℃
standard	5% RH~99% RH
size	IP66
weight	IEC61000-4-5; IEC61000-4-2; IEC61000-4-3

Installation

The interface of the product itself has been treated with foolproof measures. To install it, simply tighten the controller directly to the base (insert and tighten clockwise)
The product supports hot swapping
Under the system networking application, the information of the light controller can be imported into our company's intelligent lighting management system in batch through the WEB terminal in advance, or the light controller can be accessed to the light control system for dimming and other functional debugging by using the WeChat "UM9900 intelligent light pole" official account to scan the two-dimensional code label of the light controller

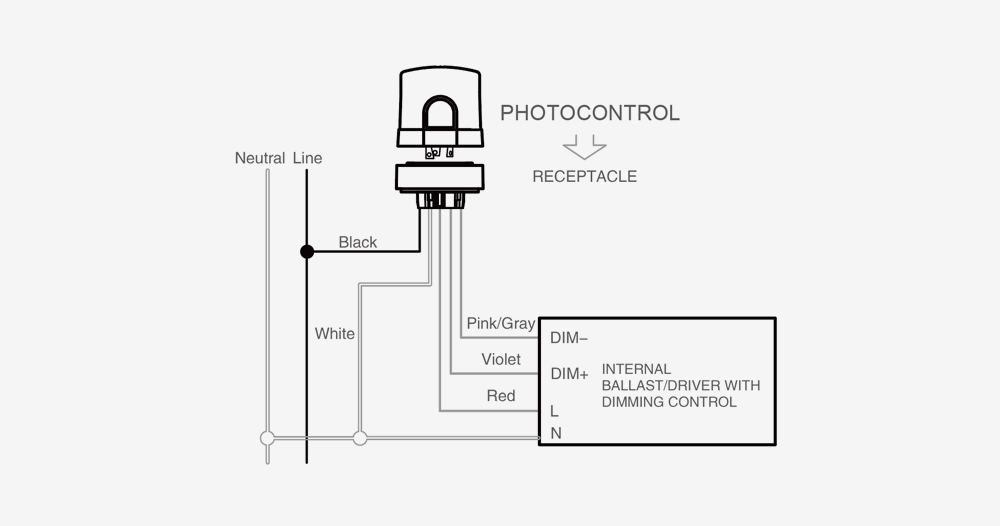

Wiring diagram

接线图英文
