JL-471CC

Built in Cat. 1 Smart Connection Single Lamp Controller

JL-471CC is a built-in wiring type single light controller developed based on 4G (LTE Cat. 1) communication mode, which can perform remote control, configuration, and real-time monitoring of operating status. The product has a compact size and is easy to install inside the lamp head or in the maintenance hole of the lamp post. Suitable antennas can be selected according to different installation and base station coverage environments. The product is internally glued with a protection level of IP67.

Features

85~305VAC wide voltage input
Zero crossing switch, ultra-high switch lifespan
6KV/3KA surge protection
Undervoltage/overvoltage/overcurrent fault self check report and protection
Class2.0 measurement accuracy (voltage/current/power/power factor/cumulative energy consumption)
126 * 40 * 30mm ultra small size
ESIM
IP67

Specifications

Power supply	Fixed: 100-277VAC; 50/60Hz
Dimming output	Power supply: 85~305VAC; 47/63HZ
wireless communication	0-10VDC
Carrying capacity	4G (LTE Cat. 1), optional external components, wearable
Device power consumption	Subtitle: LTE-FDD: B1/B3/B5/B8 LTE-TDD: B34/B38/B39/B40/B41
Working environment temperature	≤ 9A
Working environment humidity	Mobile phone: 1.2W Mobile phone: 2.4W
Shell protection	-35 ℃~70 ℃
standard	5% RH~99% RH
size	IP67
weight	IEC61000-4-5; IEC61000-4-2; IEC61000-4-3

Installation

The product is fixed inside the lighting equipment compartment through screw holes on both sides
Connect various cables according to the wiring diagram
After fixing the antenna and considering the installation environment of the rearview lamp, should additional waterproof adhesive be applied

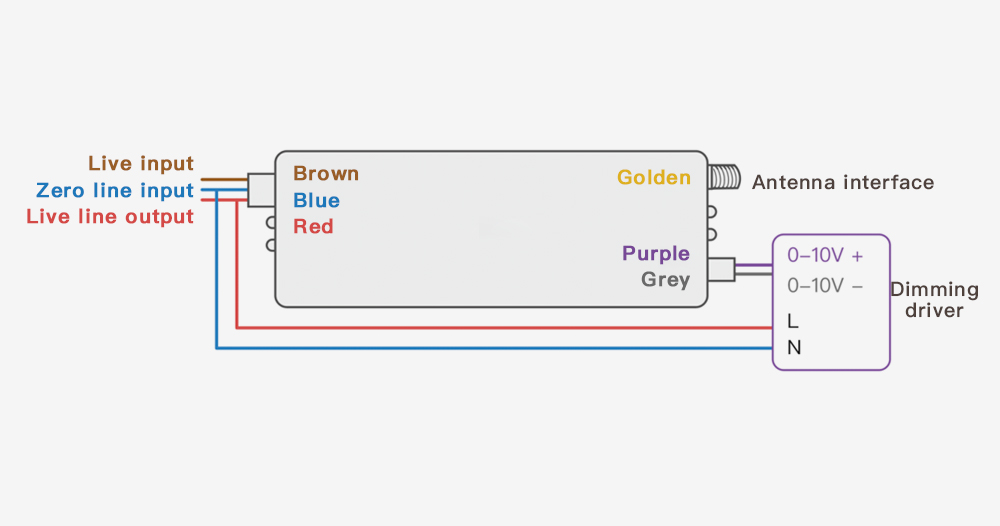

Wiring diagram
