UM-240

Fixed Twist-lock dimming receptacle

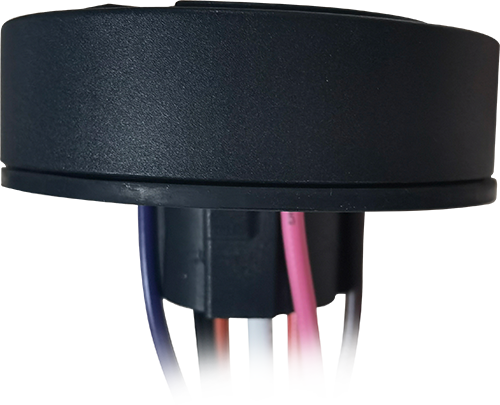

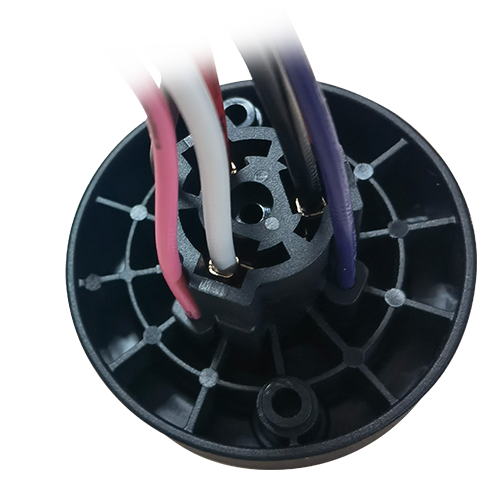

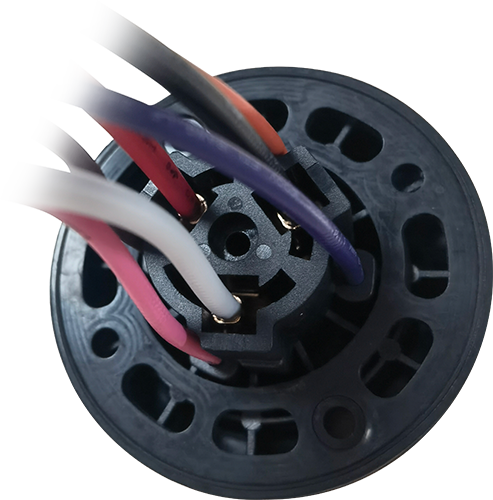

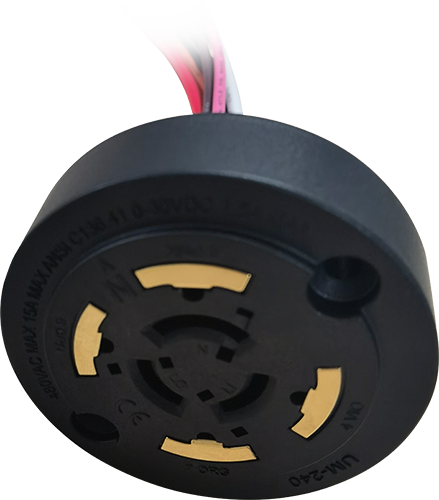

The UM-240 rotary lock light controller socket series products are all designed for outdoor lighting fixtures, used to accept the control of LED lighting fixtures by rotary lock light controllers. This series of products provides 4 gold-plated contact pieces on the top surface, compatible with the spring contact pieces of the rotary lock light controller, and 4 signal wires on the back.

Features

Glass-Fiber strongen PBT
Gilded Pads made from phophor bronze
Silicone gasket offered

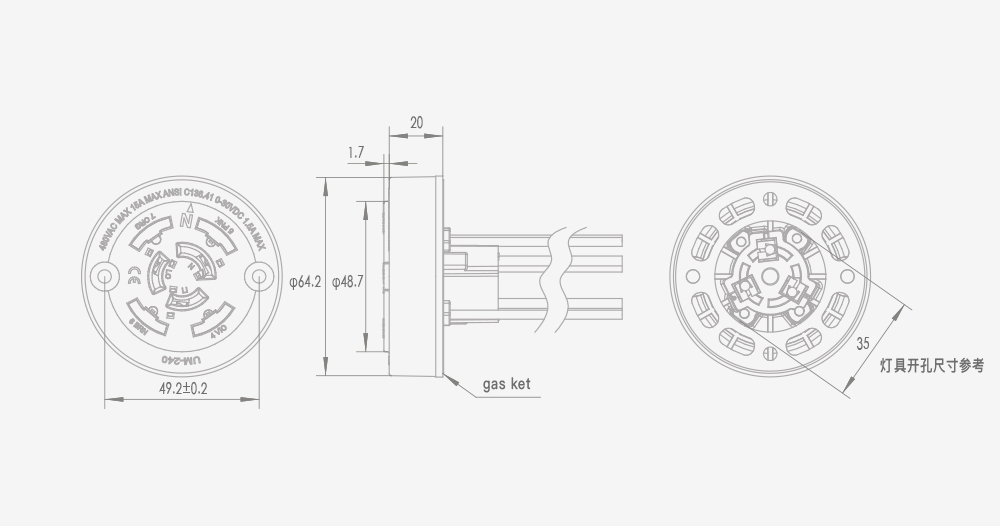

Specifications

Model No.	UM-240
Applicable Volt Range	0~480VAC
Rated Frequency	50/60Hz
Load Rating	15A
Signal Control	0-30 VDC, 250 mA Max
Lead	16AWG,18AWG 6" min
Ambient Temperature	-40°C ~ +70°C
Related Humidity	96%
Contact gold plating thickness	0.2μm
Outdoor Wiring Cable	●

Installation

Disconnect power; wire the receptacle according to the diagram below.
An arrow indicating NORTH on the top face is used to assist correct orientation.

Adjust the socket position by loosening the screws and secure it after repositioning.

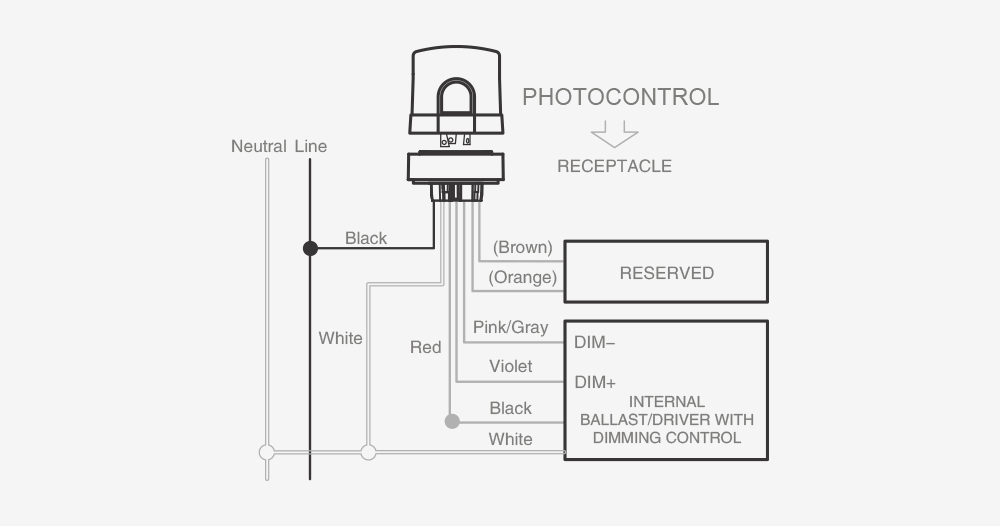

Wiring diagram
