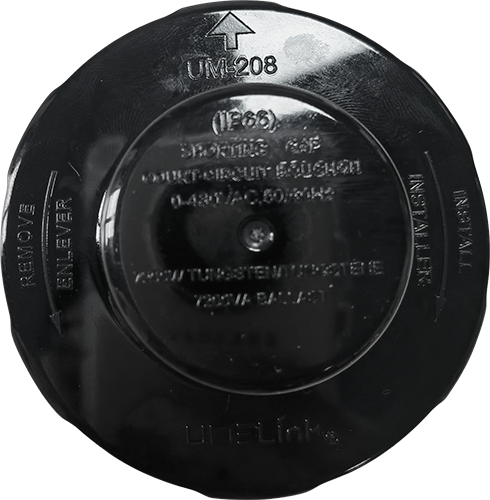

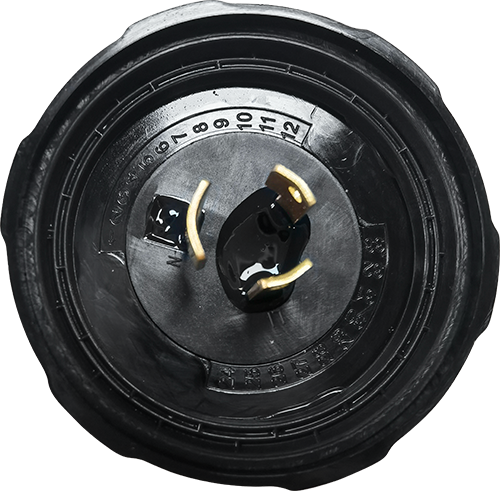

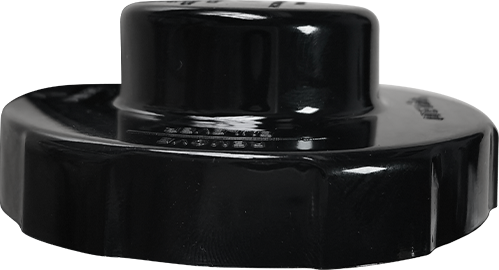

UM-208

Shorting Cap

Short a twist-lock photocontrol receptacle while under maintenance

Features

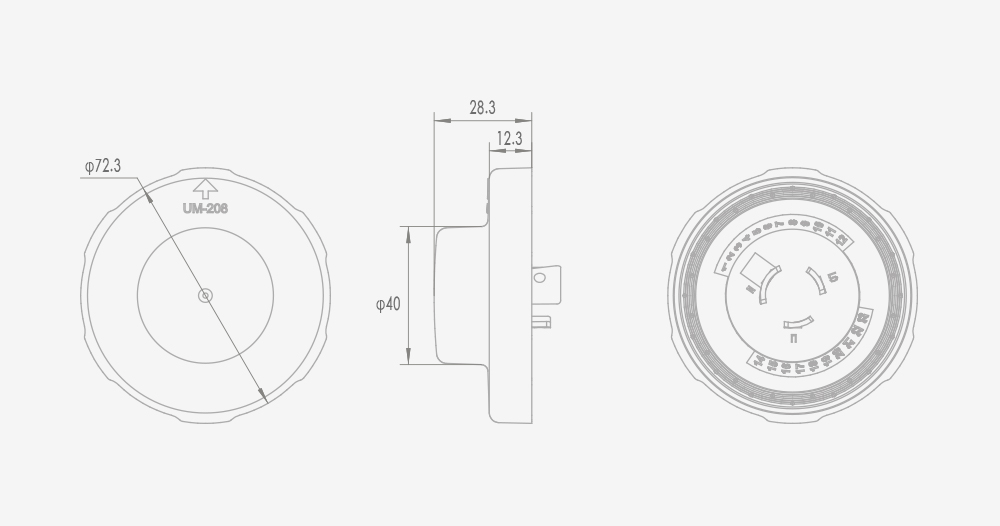

UM-208-Features

IP66 protection while installed
UV stabilized Polycarbonate enclosure
Easy-to-handle Twist-bar Enclosure

Specifications

Model No.	UM-208
Rated Loading	7200W Tungsten,7200VA Ballast
Maximum Voltage	0~480VAC
Rated Frequency	50/60Hz
Ambient Temperature	-40℃ ~ +70℃
Related Humidity	96%
Shell material	PC
IP level	IP66

Installation

Disconnect power; wire the receptacle according to the diagram below. Push the Shorting Cap on and twist it clockwise to lock it into the receptacle.

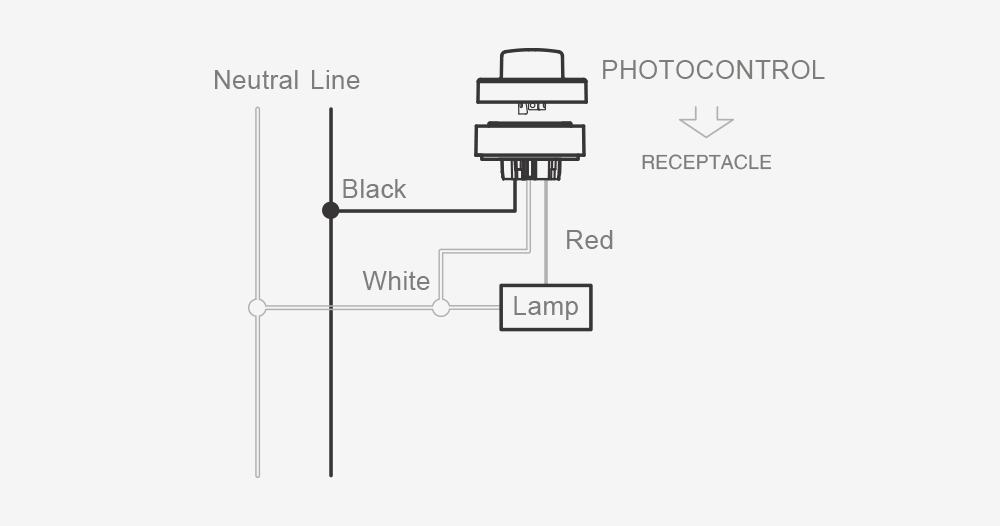

Wiring diagram
