JL-701A

Zhaga Book-18 Zhaga Controller

JL-701A is an ultra-low-cost electronic rotary lock light controller developed based on the ZHAGA BOOK18 interface standard. It can output 0V or 10V dimming signal through self-photosensitive.
The light controller is suitable for lighting scenes such as roads, lawns, courtyards, and parks.

Features

ZHAGA BOOK18 interface standard
ultra low cost
compact size, suitable for installation to various lamps
1.5mA ultra low working current
anti false triggering design of interference light source
no load power consumption ≤ 0.12W
environmental illumination ratio of switch action: 1:4
power on: full on by default, 5S self-test
protection grade: up to IP66

Specifications

Model	JL-701A
Power Supply	Rated voltage：12~24VDC Rated current：3mA
Power Consumption	Day：12~24V/1.5mA Night：12~24V/1.2mA
Dimming	0/10V
Dimming interface	0V or suspended (OD gate output)
Spectral Acquisition Range	350~1100nm，Peak wavelength 550nm
Turn on Illuminance	16Lux（±10）
Turn off Illuminance	64Lux（±10）
Turn on delay	5S
Turn off delay	15S
Electrostatic Immunity	Standard: IEC61000-4-2 Contact Discharge: ±8kV，CLASS A Air Discharge: ±15kV，CLASS A
Mechanical Vibration	IEC60068-2-6
Flammability Level	UL94-V0
Operating Temperature	-40℃~70℃
Storage Temperature	-40℃~85℃
Operating Humidity	5%RH~99%RH
IP Level	IP66
Life	≥ 8000 h
Certifications

Installation

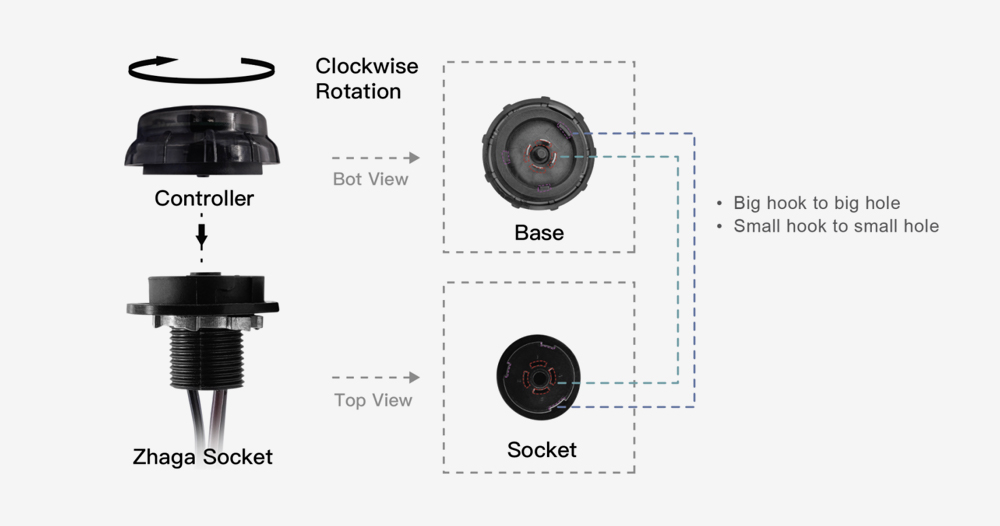

The interface of the product itself has been fool-proof design, the installation only need to tighten the controller directly to the rotatable base, as shown in Figure clockwise after insertion.

安装事宜

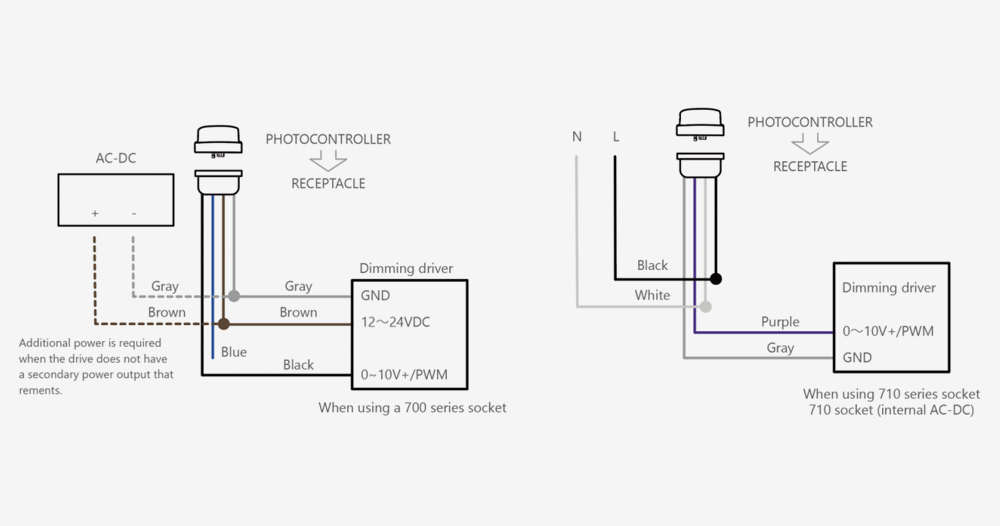

Wiring diagram

Preliminary testing

When installed for the first time, the photoelectric control device is immediately turned off.
To test "on" during the day, cover the eyes with black tape or other opaque material.
Do not cover with your fingers, as the light passing through your fingers may be enough to keep the switch open.
The test will take approximately 2 minutes.
Do not repeat the test for more than 4 hours.
