JL-712A2H

Zhaga Book-18 Zhaga Controller

The JL-712A2H light controller product is a smart latch type light controller developed based on the Zhaga Book-18 interface standard. It uses a combination of light sensing and microwave sensing sensors, can output 0-10V dimming signals, and supports infrared remote control for parameter configuration. This light controller is suitable for lighting scenarios such as roads, lawns, courtyards, parks, parking lots, factories, warehouses, etc.
The working logic of the product is that when the illumination level is met, the lamp operates at a slightly bright brightness. If a moving object is detected at this time, the lamp becomes fully bright, and after the full bright duration ends, it returns to a slightly bright brightness. When the slightly bright duration ends or the illumination level is met, the lamp is turned off.

Features

12-24VDC power supply, low power consumption
Zhaga Book-18 interface standard
0-10V dimming mode
Dynamic adjustment of microwave frequency to avoid mutual interference during dense installation
Φ 50.4 * 35mm compact size, suitable for installation on various lighting fixtures
Light sensitivity+microwave, on-demand lighting, more energy-efficient
High performance microwave, with a hanging height of 15 meters and an induction radius of ≥ 6 meters
Infrared remote control
IP66

Specifications

Power supply	Voltage: 12-24VDC Current: 12V/35mA; 24V/25mA
power dissipation	＜ 0.385W (12V); ＜ 0.55W (24V)
Dimming interface	0-10V
Sensor type	Light sensitivity+microwave
Spectral collection range	Range: 0.01~64000Lux W avelength: 350~1100nm
Microwave frequency	5.8GHz
Maximum support for microwave hanging height	15 meters
Induction radius	≥ 10 meters
Power on initialization	By default, it remains on for 5s (gradient) when powered on, and then runs normally according to the parameter settings and environmental conditions
Inductive sensitivity	Factory default of 80%, infrared remote control adjustable
Full light duration	Factory default 30S, infrared remote control adjustable
Slightly bright brightness	Factory default 0%, infrared remote control adjustable
Slightly bright duration	Factory default infinite, infrared remote control adjustable
Illumination threshold for turning on lights	Factory default 50lux, infrared remote control adjustable
Controlled light reflection compensation value	Factory default ∆ 50lux, infrared remote control adjustable
Illumination threshold when turning off lights	Illumination on+controlled light reflection compensation value
Maximum power ratio	Factory default 100%, infrared remote control adjustable
mechanical vibration	IEC60068-2-6
Flame retardant grade	UL94-V0
Working environment temperature	-40 ℃~70 ℃
Storage environment temperature	-40 ℃~85 ℃
Working environment humidity	5% RH~99% RH
Shell protection	IP66
authentication

Installation

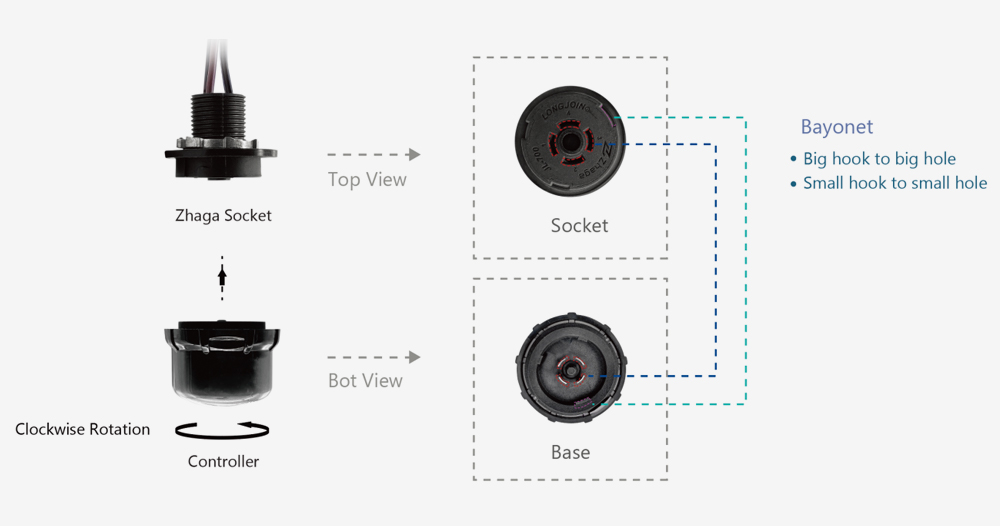

The interface of the product itself has been tampered with. When installing the light controller, simply tighten the controller directly to the base, as shown in the figure below. After inserting, tighten clockwise, and when removing, counterclockwise is sufficient.

安装英文

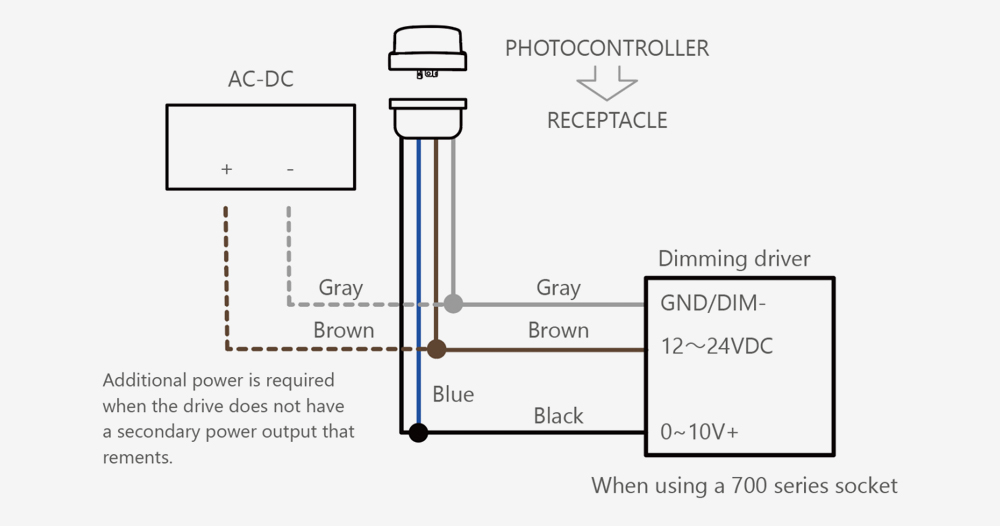

Wiring diagram

接线图英文

Note: Either black or blue wire can be selected, and it can also be connected in parallel at the same time
