JL-712A3

Zhaga Book-18 Zhaga Controller

JL-712A3 light controller products are intelligent rotary lock light controllers developed based on ZHAGA BOOK18 interface standard.It adopts light sensing and microwave mobile combined
sensor, which can output 0~10V dimming signal.
The light controller is suitable for lighting scenes such as roads,lawns, courtyards, parks, car park and construction site.

Features

light sense + microwave, lighting on demand, more humanized and power saving
microwave anti false triggering, indoor and outdoor
automatic dynamic microwave frequency adjustment to avoid mutual interference in dense installation
comply with zhaga book18 interface standard
DC power supply, ultra low power consumption
support 0 ~ 10V dimming mode
compact size, suitable for installation to various lamps
anti false triggering design of interference light source
reflected light compensation design of lamps
waterproof protection grade up to IP66

Specifications

Model	JL-712A3
Power Supply	Rated voltage：12~24VDC Rated current：12V/45mA；24V/30mA
Power Consumption	12V/3.5mA；24V/3.5mA
Dimming	0/10V
Spectral Acquisition Range	350~1100nm，Peak wavelength 550nm
Dimming interface	Type：0~10V ； Accuracy：±2% ； Drive current：40mA（Typical）
Turn on Illuminance	50Lux（±10）
Turn off Illuminance	Reflected light + 40Lux（±10）after each turn on Lower limit：50+40Lux（±10）； Upper limit：6000Lux（±100）
Reflected light compensation upper limit	6000Lux（±100）
Initialization	After power on, the light is turned on by default and maintains 5S, then automatically turns off the light and enters the auto-sensing operation mode *1
Turn on delay	5S
Turn off delay	60S
0%~20%；20%~100% Brightness change time	1S
100%~20%；X%~0% Brightness change time	8S
100% brightness hold time after microwave trigger	30s
Stand-by Dimming	20%
Maximum hanging height of microwave	15M
Sensing radius	4-8M (by 15m hanging height)
Microwave induction angle	92°
Microwave anti-false trigger	Can prevent wind, rain, leaves, and small animals
Mechanical Vibration	IEC60068-2-6
Flammability Level	UL94-V0
Operating Temperature	-40℃~70℃
Storage Temperature	-40℃~85℃
Operating Humidity	5%RH~99%RH
IP Level	IP66
Certifications

Installation

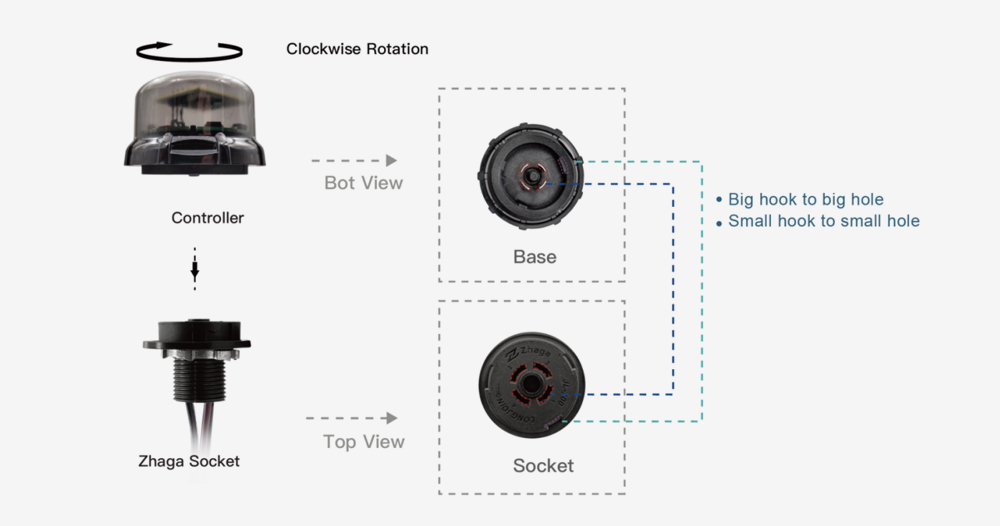

The interface of the product itself has been fool-proof design, the installation only need to tighten the controller directly to the rotatable base, as shown in Figure clockwise after insertion.

安装示意图英文

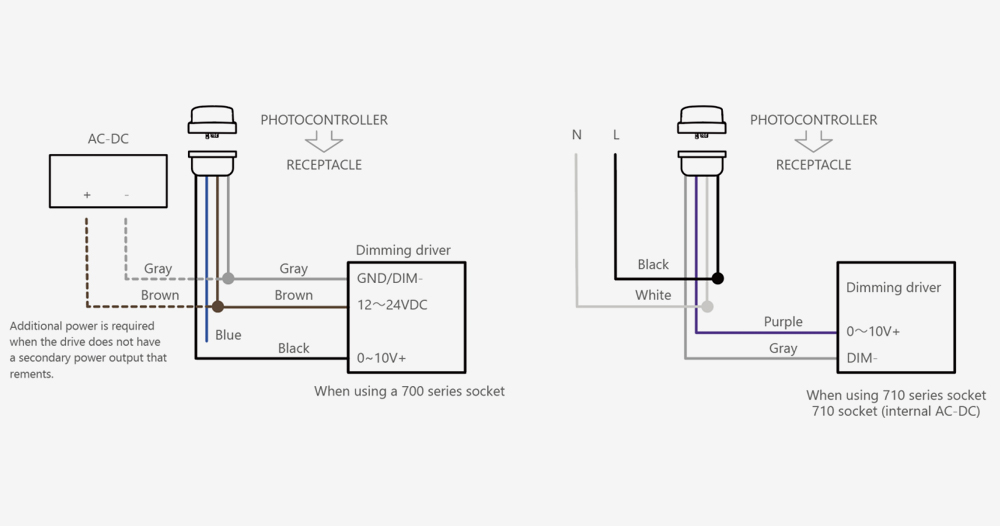

Wiring diagram

Ordering Information
