JL-712B2

Zhaga Book-18 Zhaga Controller

JL-712B2 is based on ZHAGA BOOK18 interface standard development of intelligent lock type light controller, using light sensing + microwave mobile combination sensor, can output 0~10V dimming signal, at the same time equipped with Bluetooth mesh communication network, can be controlled and configured through APP. The lamp controller is suitable for roads, lawns, courtyards, parks, parking lots, industrial mines and other lighting scenes. The special envoy is the UFO lamp with zhaga socket.

Features

12 to 24 VDC power supply, low power consumption
ZHAGA BOOK18 interface standard
Automatic dynamic microwave frequency adjustment to avoid mutual interference in dense installation
Φ50*36mm size, suitable for installation in most lamps
0~10V dimming interface
Light sensor + microwave sensor, on-demand lighting, more power saving
15m hanging height
BLE MESH
Support third-party voice control, such as Alexa, Google Assistant, SmartThings, IFTTT, Xiaodu, Tencent Xiaowei, Dingdong, etc.
IP66

Specifications

Model	JL-712B2
Power Supply	Rated voltage：12~24VDC Rated current：40mA
Power Consumption	＜0.6W
Sensor Type	Light-sensitive + Microwave
Spectral Acquisition Range	860~1100nm，Peak wavelength 960nm
Maximum hanging height of microwave	15M
Sensing radius	>10m (by 15m hanging height)
Anti-jump delay	3S (minimum interval time for turning on the light after the light is off)
Hold time	Default 30S，APP adjustable
Stand-By brightness	Default 0%，APP adjustable
Stand-By time	Default 5S，APP adjustable
Dimming interface	Type：0~10V Accuracy：±2%
Turn on Illuminance	APP adjustable, divided into 5 levels: Daytime: any illuminance Dusk Evening Night Late at night
Energy saving strategy	custom
Mechanical Vibration	IEC60068-2-6
Flammability Level	UL94-V0
Operating Temperature	-40℃~70℃
Storage Temperature	-40℃~85℃
Operating Humidity	5%RH~99%RH
IP Level	IP66
Certifications

Installation

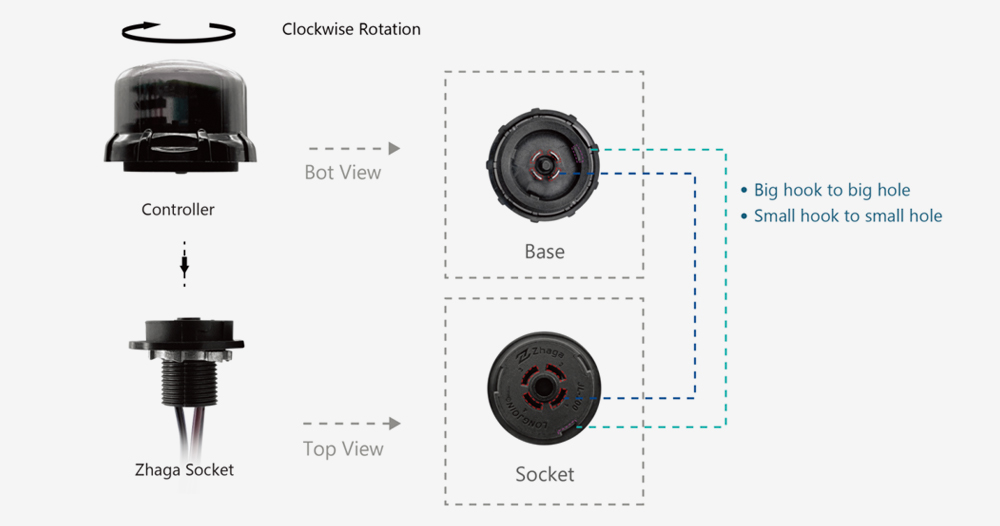

The interface of the product itself has been fool-proof design, the installation only need to tighten the controller directly to the rotatable base, as shown in Figure clockwise after insertion.

示意图

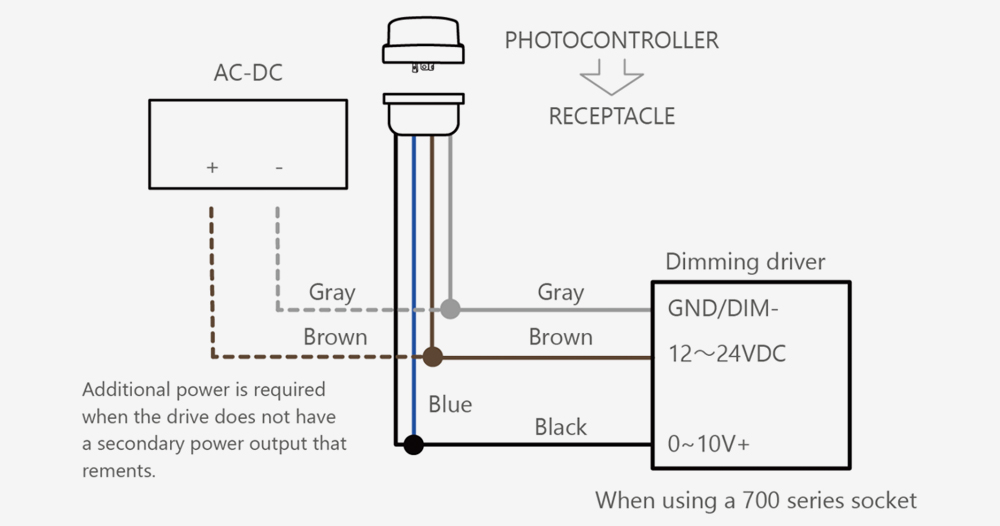

Wiring diagram

接线图

Note: Either black or blue wire can be selected, and it can also be connected in parallel at the same time
