JL-719WB

Zhaga Book-18 Zhaga Controller

JL-719WB is based on ZHAGA BOOK18 interface standard development of intelligent lock type light controller, can output 0~10V dimming signal, at the same time equipped with WIFI&Bluetooth communication network, can be controlled and configured through APP. The lamp controller is suitable for roads, lawns, courtyards, parks, parking lots, industrial mines and other lighting scenes.

Features

12 to 24 VDC power supply, low power consumption
ZHAGA BOOK18 interface standard
Φ50.4*35mm size, suitable for installation in most lamps
0~10V dimming interface
Support WIFI&BLE dual-mode configuration and control
Support third-party voice control, such as Alexa, Google Assistant, SmartThings, IFTTT, Xiaodu, Tencent Xiaowei, Dingdong, etc.
IP66

Specifications

Model	JL-719WB
Power Supply	Rated voltage：12~24VDC Rated current：100mA
Power Consumption	＜1W
Communication	WIFI（802.11/g/b）+BLE（5.1）
Dimming interface	Type：0~10V; Accuracy：±2%;
Energy saving strategy	Time and brightness can be set
Remote upgrade	Sustain OTA
Mechanical Vibration	IEC60068-2-6
Flammability Level	UL94-V0
Operating Temperature	-40℃~+70℃
Storage Temperature	-40℃~+85℃
Operating Humidity	5%RH~99%RH
IP Level	IP66

Installation

The interface of the product itself has been fool-proof design, the installation only need to tighten the controller directly to the rotatable base, as shown in Figure clockwise after insertion.

安装示意图

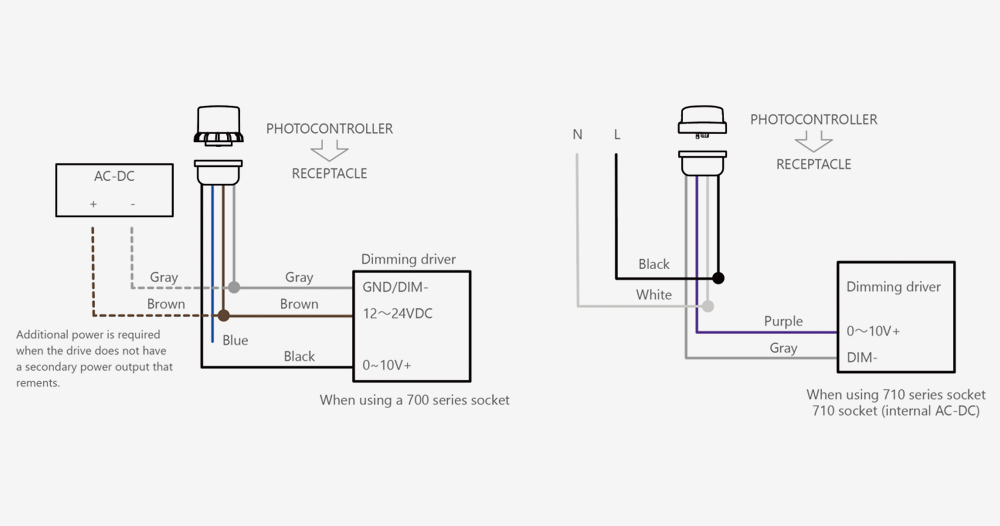

Wiring diagram

接线图英文
